Abstract Forward Podcast #10: CISO Risk Management and Threat Modeling Best Practices with Donald Malloy and Nathaniel Engelsen!

Fig. 1. Joe the IT Guy, 10/17/2018

Featuring the esteemed technology and risk thought leaders Donald Malloy and Nathaniel Engelsen — this episode covers threat modeling methodologies STRIDE, Attack Tree, VAST, and PASTA. Specifically, how to apply them with limited budgets. It also discusses the complex intersection of how to derive ROI on threat modeling with compliance and insurance considerations. We then cover IAM best practices including group and role level policy and control best practices. Lastly, we hear a few great examples of key CISO risk management must-dos at the big and small company levels.

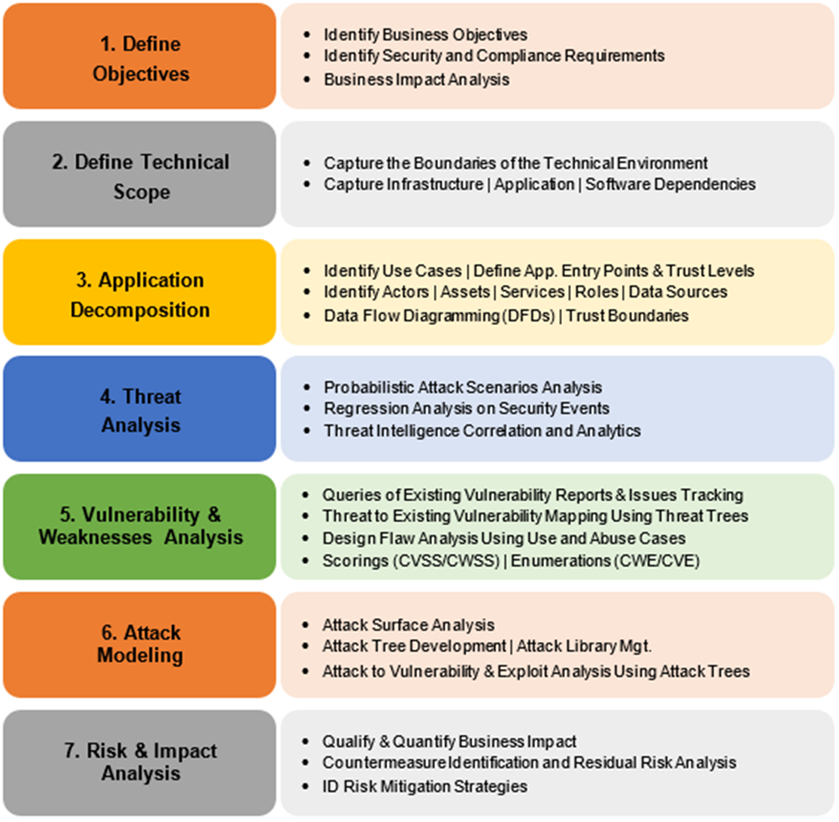

Fig. 2. Pasta Threat Modeling Steps (Nataliya Shevchenko, CMU, 12/03/2018).

Donald Malloy has more than 25 years of experience in the security and payment industry and is currently a security technology consultant advising many companies. Malloy was responsible for developing the online authentication product line while at NagraID Security (Oberthur) and prior to that he was Business Development and Marketing Manager for Secure Smart Card ICs for both Philips Semiconductors (NXP) and Infineon Technologies. Malloy originally comes from Boston where he was educated and has M.S. level degrees in Organic Chemistry and an M.B.A. in Marketing. Presently he is the Chairman of The Initiative for Open Authentication (OATH) and is a solution provider with DualAuth. OATH is an industry alliance that has changed the authentication market from proprietary systems to an open-source standard-based architecture promoting ubiquitous strong authentication used by most companies today. DualAuth is a global leader in trusted security with two-factor authentication include auto passwords. He resides in southern California and in his spare time he enjoys hiking, kayaking, and traveling around this beautiful world.

Nathaniel Engelsen is a technology executive, agilest, writer, and speaker on topics including DevOps, agile team transformation, and cloud infrastructure & security. Over the past 20 years he has worked for startups, small and mid-size organizations, and $1B+ enterprises in industries as varied as consulting, gaming, healthcare, retail, transportation logistics, and digital marketing. Nathaniel’s current security venture is Callback Security, providing dynamic access control mechanisms that allow companies to turn off well-known or static remote and database access routes. Nathaniel has a bachelor’s in Management Information Systems from Rowan University and an MBA from the University of Minnesota, where he was a Carlson Scholar. He also holds a CISSP.

The podcast can be heard here.

More information on Abstract Forward Consulting can be found here.

Disclaimer: This podcast does not represent the views of former or current employers and/or clients. This podcast will make every reasonable effort to verify facts and inferences therefrom. However, this podcast is intended to entertain and significantly inform its audience based on subjective reason-based opinions. Non-public information will not be disclosed. Information obtained in this podcast may be materially out of date at or after the time of the podcast. This podcast is not legal, accounting, audit, health, technical, or financial advice. © Abstract Forward Consulting, LLC.

8 Effective Third-Party Risk Management Tactics

In this increasingly complex security landscape with threat actors and vendors changing their tools rapidly, managing third-party risk is very difficult, ambiguous, and it’s even more difficult to know how to prioritize mitigation spend.

Fig 1. Risk, Stock Image, 2019.

The key to any vendor risk management program or framework is measurement, repeatability, and learning or improving from what was repeated as the business and risks change. These are the nine best practices you can follow to help assess your vendors’ security processes and their willingness to understand your risks and collectively mitigate both of them.

1) Identify All Your Vendors / Business Associates:

Many companies miss this easy step. Use RBAC (role-based access controls) when applicable – windows groups or the like. Creating a repeatable, written, compliance process for identifying them and making updates to the list as vendors move in and out of the company is worthwhile.

2) Ensure Your Vendors Perform Regular Security Assessments:

Risk assessments should be conducted on a weekly, monthly, or quarterly basis and reviewed and updated in response to changes in technology and the operating environment.

At a minimum, security risk assessments should include:

a) Evaluate the likelihood and potential impact of risks to in-scope assets.

b) Institute measures to protect against those risks.

c) Documentation of the security measures taken.

Vendors must also regularly review the findings of risk assessments to determine the likelihood and impact of the risk that they identify, as well as remediate any deficiencies.|

Fig. 2. Stock Image, Third-Party Risk Mgmt Inputs, 2019.

3) Make Sure Vendors Have Written Information Security Policies / Procedures:

a) Written security policies and procedures should clearly outline the steps and tasks needed to ensure compliance delivers the expected outcomes.

b) Without a reference point, policies and procedures can become open to individual interpretation, leading to misalignment and mistakes. Verify not only that companies have these written policies, but that they align with your organization’s standards. Ask other peers in your industry for a benchmark.

 4) Prioritize Vendors Based on Risk – Use Evidence and Input from Others – NOT Speculation:

a) Critical Risk: Vendors who are critical to your operation, and whose failure or inability to deliver contracted services could result in your organization’s failure.

b) High Risk: Vendors (1) who have access to customer data and have a high risk of information loss; and / or (2) upon whom your organization is highly dependent operationally.

c) Medium Risk: Vendors (1) whose access to customer information is limited; and / or whose loss of services would be disruptive to your organization.

d) Low Risk: Vendors who do not have access to customer data and whose loss of services would not be disruptive to your organization.

5) Verify That Vendors Encrypt Data in All Applicable Places – At Rest, In Transit, etc:

a) Encryption, a process that protects data by making it unreadable without the use of a key or password, is one of the easiest methods of protecting data against theft.

b) When a vendor tells you their data is encrypted, trust but verify. Delve deeper and ask for details about different in-transit scenarios, such as encryption of backup and what type of backup. Ask them about what type of encryption it is and get an infographic. Most people get lost when you ask this question.

c) It’s also imperative that the keys used to encrypt the data are very well-protected. Understanding how encryption keys are protected is as vital as encryption itself. Are they stored on the same server? Is multi-factor authentication needed to get access to them? Is there a time limit on how long they can have access to the key?

6) Ensure Vendors Have A Disaster Recovery Program:

In order to be compliant with the HIPAA Security Rule and related rules, vendors must have a detailed disaster recovery program that includes analysis on how a natural disaster—fire, flood or even a rodent chewing through cables—could affect systems containing ePHI. The plan should also include policies and procedures for operating after a disaster, delineating employees’ roles and responsibilities. Finally, the plan should clearly outline the plan for restoring the data.

7) Ensure Access Is Based on Legitimate Business Needs:

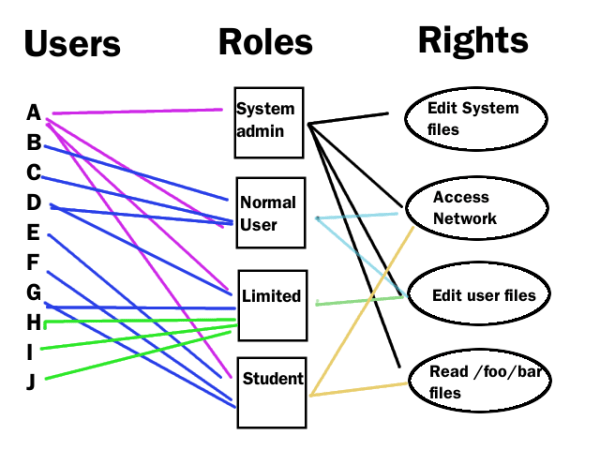

Fig 3. Stock Image, RBAC Flow, 2019.

It’s best to follow the principle of least privilege (POLP), which is the practice of limiting access rights for users to the bare minimum permissions they need to perform their work. Under POLP, users are granted permission to read, write, or execute only the files or resources they need to do their jobs. In other words, the least amount of privilege necessary. RBAC is worth mentioning here again.

8) Vet All New Vendors with Due Diligence:

a) Getting references.

b) Using a standard checklist.

c) Performing a risk analysis and determining if the vendor will be ranked Critical, High, Medium or Low.

d) Document and report to senior management.

Contact us here to learn more.

3 Key Points From “Unsecurity” By Evan Francen

UNSECURITY-1200x628-adNational author, speaker, consultant, and entrepreneur Evan Francen got into information security long before it was cool and buzzing in the media, and long before every so-called IT consultancy started chasing the money. In fact, he and I both dislike the money chasers. He and his growing consultancy, FRSecure are for-profit, but they don’t do it for the money.

Like a patriot who delays college to join the army amid dire national conflict, Francen offers a fact-based call to arms to fix the broken cybersecurity industry in his 2019 book “Unsecurity”. Having known him and his company for a few years, and having read the book and many on this subject, this content is worth sharing because too few people write or talk about how to actually make this industry better. Here are my three unbiased key points from his book.

1)    We’re Not Speaking the Same Language:

614hGPZRmJL._SY600_Francen opens his book with a lengthy chapter on how poor communication between cybersecurity stakeholders exacerbates trouble and risk. You can’t see or measure what isn’t communicated well. It starts because there are five main stakeholder groups who don’t share the same vocabulary amid conflicting priorities.

  1. IT: Speaks in data tables and code jargon.
  2. Cyber: Speaks in risk metrics and security controls.
  3. Business: Speaks in voice of the customer and profits.
  4. Compliance:Speaks in evidence collection and legal regulatory frameworks.
  5. Vendor: Speaks in sales and marketing terms.

Ideally, all these stakeholders need to work together but are only as strong as the weakest link. To attain better communication and collaboration between these stakeholders, all must agree on the same general security framework best for the company and industry, maybe NIST CSF with its inferred definitions or maybe ISACA Cobit. However, once you pick the framework you need to start training, communicating, and measuring against it and only it –going with its inferred definitions.

Changing frameworks in the middle of the process is like changing keys in the middle of a classical song at a concert – don’t do it. That’s not to say that once communication and risk management gets better, that you can’t have some hybrid framework variation – like at a jazz concert. You can but you need proof of the basic items first.

Later, in the chapter Francen describes the communication issue of too many translations. That’s too many people passing the communication onto other people and giving it their spin. Thus, what was merely a minor IT problem ticket turns into a full-blown data breach? Or people get tied up arguing over NIST, ISSA, ISACA, and OWASP jargon – all the while nothing gets fixed and people just get mad at each other yet fail to understand one another. Knowing one or two buzz words from an ISACA conference or paper yet failing to understand how they apply to NIST or the like does not help. You should be having a framework mapping sheet for this.

The bigger solution is more training and vetting who is authorized to communicate on key projects. The issue of good communication and project management is separate from cybersecurity though it’s a critical dependency. Organizations should pre-draft communication plans with roles and scope listed out, and then they should do tabletops to solidify them. Having an on-site Toastmasters group is also a good idea. I don’t care if you’re a cyber or IT genius; if you can’t communicate well that’s a problem that needs to be fixed. I will take the person with much better communication skills because likely they can learn what they don’t know better than the other.

2)    Overengineered Foundations:

In chapter two, Francen addresses “Bad Foundations”. He gives many analogies including building a house without a blueprint. However, I’m most interested in what he says on page 76:

  • “Problem #4 Overengineered Foundation – too much control is as bad as too little control, and in some cases, it’s even worse than no control at all.”

What he is saying here is that an organization can get so busy in non-real world spreadsheet assessments and redundant evidence gathering that their heads are in the sand for so long that they don’t see to connect the dots that other things are going array and thus they get compromised. Keep in mind IT and security staff are already overworked, they already have many conflicting dials and charts to read – amid false alarms. To bog them down in needless busywork must be weighed against other real-world security tasks, like patch management, change management, and updating IAM protocols to two-factor.

If you or your organization have an issue figuring this out, as Francen outlines, you need to simplify your risk management to a real-world foundational goal that even the company secretary can understand. It may be as simple as requiring long complex (multicharacter) passwords, badge entry time logs for everyone, encrypting data that is not public, or other basics. You must do these things and document that they have been done one at a time, engraining a culture of preventative security vs. reactive security.

3)    Cultivate Transparency and Incentives:

In chapter five, “The Blame Game” Francen describes how IT and business stakeholders often fail to take responsibility for security failings. This is heavily influenced by undue bias, lack of diversity, and lack of fact-based intellectualism within the IT and business silos at many mid-sized and large organizations. I know this is a hard pill to swallow but its so true. The IT and business leaders approving the bills for the vendors doing the security assessments, tool implementations, and consulting should not be under pressure to give a favorable finding in an unrealistic timeframe. They should only be obligated to give timely truthful risk prudent advice. Yet that same advice if not couched with kid gloves can get a vendor booted from the client – fabricating a negative vendor event. Kinda reminds me of accounting fraud pre-Sarbanes Oxley.

The reason why is because risk assessors are creating evidence of security violations that the client does not agree with or like, and thus you are creating legal risk for them – albeit well justified and by their own doing. From Francen’s viewpoint, this comprehensive honest assessment also gives the client a way to defend and limit liability by disclosing and remediating the vulnerabilities in a timely manner and under the advisement of a neutral third party. Moreover, you’re going to have instructions on how to avoid them in the future thus saving you money and brand reputation.

Overall, transparency can save you. Customers, regulators, and risk assessors view you more positively because of it. That’s not to say there are not things that will remain private because there are many, trade secrets, confidential data, and the like. My take on Francen’s mention of the trade off’s between transparency and incentives in a chapter called “The Blame Game” is that it’s no longer acceptable to delay or cover up a real security event – not that it ever was. Even weak arguments deliberately miscategorizing security events as smaller than they are will catch up with you and kick your butt or get you sued. Now is the time to be proactive. Build your incident response team ahead of time. It should include competent risk business consultants, cyber consultants, IT consultants, a communication lead, and a privacy attorney.

Lastly, if we as an industry are going to get better we’re going to have to pick up books, computers, pens, and megaphones. And this book is a must-read! You can’t be passive and maintain your expert status – it expires the second you do nothing and get poisoned by your own bias and ego. Keep learning and sharing!

Cybersecurity Firm Imperva Discloses Data Breach

Imperva, formally Incapsula, disclosed on 08/27/19 a data breach impacting its many customers. The company focuses on cyber-security and DDoS mitigation and consulting, heavily via its cloud web application firewall (WAF).

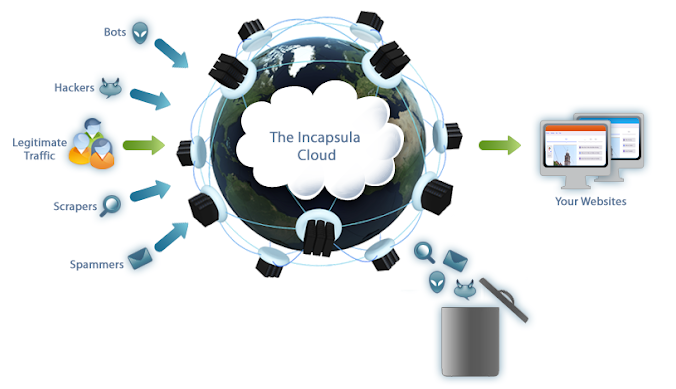

Fig. 1. Imperva, 2019.incapcloud

The breach was discovered 08/20/19 via a third-party. Unfortunately, the exposure goes back to 09/15/17 which means they were compromised at least in part for more than two full years! Clearly, this is evidence of poor internal controls. The exposed data includes customer email addresses, hashed and salted passwords; and API keys and customer-provided SSL certificates — for a partial portion of the exposed data.

Don’t count on cyber security and software firms to be more secure than any other type of company. This breach is likely to negatively impact sales, product design, and will trigger a few investigations, and at least one lawsuit. Additionally, the insurance claim question is a loaded one — and is dependant on how much due diligence the company did before the breach.

To learn more about how to stop data breaches like these at your organization consider attending the Cyber Security Summit this fall.

  • The Ninth Annual Cyber Security Summit, “Pushing the Cyber Security Envelope,” takes place Oct. 28-30, 2019, at the Minneapolis Convention Center in Minneapolis, Minn.
  • The Summit has given awards to top leaders in industry, government and academia since 2015. However, for 2019 the awards program was expanded to include a wider array of visionaries.
  • New this year, women in Cyber, PLUS 16 Tech Sessions, along with Healthcare & Med Device Cyber Security.  Check out this Star Tribune piece from Summit co-chair Catharine Trebnick and colleague Kyle Bauser on this very important topic.
  • To stay up to date on the Summit and top cyber security issues, follow the Cyber Security Summit on social media: TwitterFacebookLinkedInYouTube. Follow the hashtag #cybersummitMN for the latest conversations on this top matter.

As Summit co-founder Eileen Manning stresses in a well-circulated cover story for Upsize Magazine, cyber security is fundamental for small businesses that work with larger companies, which require it – not to mention for pure survival.

Data breaches like the one at Impervia are likely to increase so interested parties should come together to learn, debate, and flesh out solutions for a more secure future!

Top Ten Ways Companies Can Reduce Cyber Risk

cost-of-cyber-attacks-to-business-mq593szq6dt3vzuawhu5qtm2upt66jfkqpxzl18l8sMid-sized businesses are defined from about $50 million to $800 million in revenue. A 2017 report published by Keeper Security and the Ponemon Institute found more than 50% of small and medium business had been breached in the past 12 months, but only 14% of them rated their ability to defend against cyber-threats as “highly effective” (Keeper / Ponemon, 2017). According to the 2017 Verizon Data Breach Investigations Report, 75% of the breaches were caused by outsiders with 51% involving organized criminal groups and the remaining involved internal actors. Not surprising, malware installed via malicious email attachments was present in 50% of the breaches involving hacking(Verizon, 2017). Here are ten steps (applicable to any size business) you can take to shield your mid-sized business from cyber-attacks:

10) Train Staff Often:

Most cyber-attacks take the form of phishing and spear phishing which is hackers targeting individuals rather than computer systems – typically with the help of good social engineering (IT Governance Blog, 2017). Therefore, employees need to be educated to roll back what they share on social media and to opt out of data harvesting when they can. Training needs to be ongoing because the threat landscape and technology change so fast. For example, ransomware was not a serious attack vector 6 years ago, but it is front and center today. Additionally, crypto-currency mining networks is an exploit vector that is arguably less than 2 years old and growing rapidly. Lastly, training more often improves the company security culture and that is directly related to keeping a good business reputation and core customer base. Here are a few more training necessities:

1. Follow cyber security best practices and conduct audits on a regular basis – based on your selected one or two frameworks (Cobit 5, ISO 2700, etc)

2. Use games contest and prizes to teach cyber safety – leadership must do this as well.

3. Notify and educate staff of any current cyber-attacks – have a newsletter.

4. Teach them how to handle and protect sensitive data – do lunch and learns.

9) Secure Wireless Networks:

Wireless networks can be easily exploited by cyber attackers, unknowing guests, and even angry customers. Your network is not like a coffee shop community room but rather it’s like a bank vault with many segmented areas – map the segments and know their rank order value. To harden your wireless network, avoid WEP (Wired Equivalent Privacy) encryption (which can be cracked in minutes) and use only WPA2, which uses AES-based encryption and provides better security than WPA.

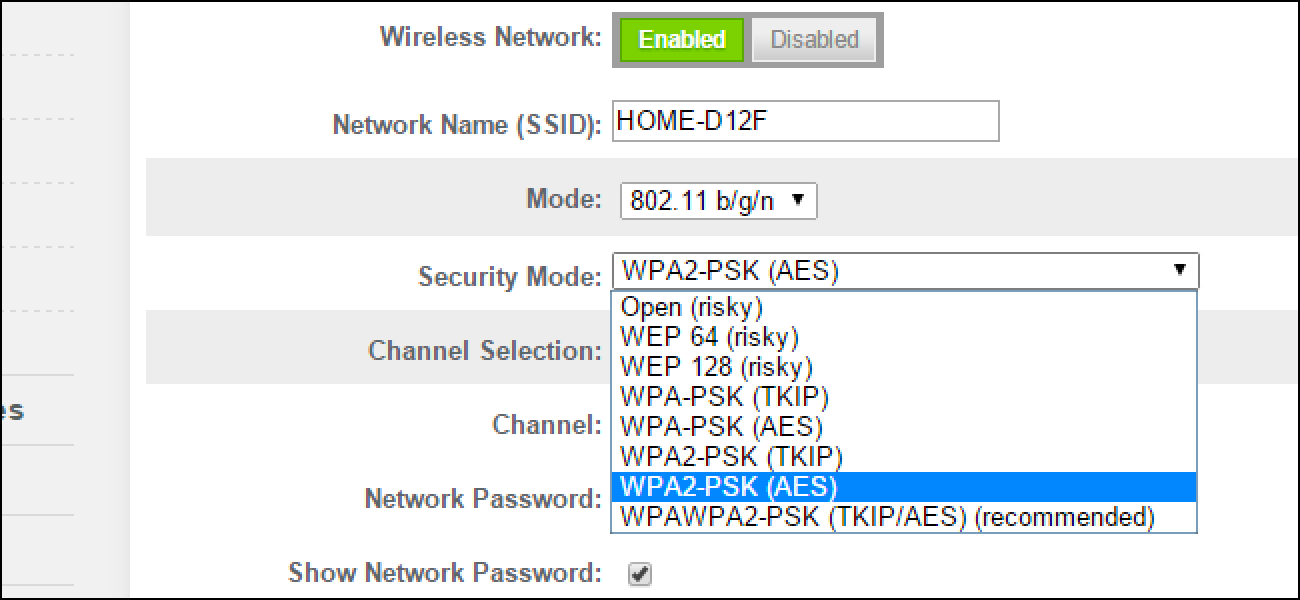

Fig 1. (WPA2 Selection Screen Clip).

wpa_top

If you have a Wi-Fi network, be sure access to the router is secured by a password and hidden so that it does not broadcast the network name. To hide your Wi-Fi network, set up your wireless access point or router so it does not broadcast the network name, known as the Service Set Identifier (SSID). Also, remember to password-protect access to the router. Additionally, for protection against brute-force attacks, protect your network with a complex passphrase containing at least 25 characters and including a mix of letters, upper and lower case and numerals and symbols. Use a firewall and encryption to safeguard your internet connection.

8) Physically Secure Your Environment:

Focusing on web tools and monitoring is needed, but it’s also important to remember there are physical concerns about securing your network as well. To a threat actor overcoming all of your security measures may be as easy as walking up to your router and pressing the reset button. Make sure that your key pieces of in-office infrastructure are secure, and that you’re monitoring them with video, sensors or other physical security controls. Make sure to be creative and thorough about how you define a physical security connection point including: doors, public lobbies, windows, air vents, turnstiles, roofs, printer room, network closet, and USB ports on machines, etc. Lastly, employees should keep their devices near them at all times.

7) Double Down on Firewalls:

While most routers have a firewall built in that can protect your internal network against outside attacks, you should know that it may not be automatically activated. It’s generally called something like SPI (stateful packet inspection) or NAT (network address translation). Either way, turn it on (Chelsea Segal, Cox Blue, 09/16/18).

It’s also important to ensure that your own software isn’t sending information out over the network or the internet without your permission. For that, you’ll want to install firewall software on your PC as well. PC Magazine’s top pick is Check Point ZoneAlarm Pro, but the default firewall that comes with Windows 8 and 10 is also a good start.

6) Evaluate Your Operational Resilience and Cyber-Security Practices Quarterly:

A good start is the US-CERT’s Cyber Resilience Review (CRR), which helps organizations assess enterprise programs and practices across 10 domains including risk management, incident management, service continuity, and more (SBA, 2018). They can also use the CSET (Cyber Security Evaluation Tool), which is a free customizable multi-framework DHS created general cyber security assessment.

5) Review Control Access / IAM and Audit Access Regularly:

Administrative access to your systems should only be granted on a need-to-know basis – least privilege principle. The correct job roles should be in the correct windows access groups. Keep sensitive data – such as payroll – out of the hands of anyone who doesn’t need it to do their job, marketing for example. Remove unused, stale, or unnecessary IAM users/credentials. Also, consider decommissioning old systems for risk reduction and cost savings – with the appropriate project analysis done. Use a secure strong password especially for single sign on interfaces – two factor authentication. Organizations should audit their IAM user activity to see which users haven’t logged into AWS for at least 90 days and revoke their permissions. Monitor user activity in all cloud services (including IAM user activity) to identify abnormal activity indicative of threats arising from a compromised account, or malicious/negligent internal employee – when corroborated with event logs and related intelligence.

4) Back up and Secure Your Systems and Data but Don’t Over Retain:

Ransomware, or viruses used by hackers to encrypt an organization’s computer files and detain them until a ransom is paid, has emerged as a serious and growing threat to businesses worldwide, according to the FBI (FBI CISO Report 2018). Whether data is stored in the cloud, on-premises, or in a hybrid data center, businesses should back up all files to hard drives stored in a safe place outside the reach of cyberthieves. These are some key data backup subpoints.

1. Limit access to sensitive data to only a few authorized employees.

2. Encrypt all your sensitive data – do not over-classify.

3. Backup your data periodically and store it in an offsite location.

4. Protect all devices with access to your data – third party vendor implications.

5. If you accept credit cards transactions, secure each point of sale.

3) Create a Guidebook for Mobile Security:

While mobile devices allow for work anywhere, anytime, they create significant security challenges. The FCC suggests requiring users to password-protect their devices, encrypt data, and install security apps to prevent criminals from stealing information while the phone is on public networks (FCC, Feb 2018). Plus, set reporting procedures for lost or stolen mobile devices. Draft a BYOD policy that separates personal vs. corporate data and covers the below points.

1. Ensure your equipment has the latest security software and run anti-virus/malware scans regularly. If you don’t have good anti-virus software installed, buy and install it.

2. Install all software updates as soon as they are available, including all web browsers.

3. Have the latest operating systems on your devices with access to regular updates.

4. Make sure your internet connect is protected with firewall security.

5. Make sure your Wi-Fi network is encrypted, hidden, and password protected.

2) Use Encrypted Websites for E-commerce Via Strong Third-Party Risk Management Policies:

Only buy from encrypted websites by looking for https on every page. Don’t’ be teased in by super low prices or the like, it may be a drive by download set-up. Ensure that the owner of the website is reputable and is who they say they are. This kind of gets at third party and supply chain risk management, which should be based on some applicable security framework for your industry, etc.

1) Avoid When Possible and Rigorously Evaluate Freeware:

There are a lot of free options for software including anti-virus (AVG), graphic design (GIMP), marketing and sales applications, some of which are quite reliable. However, many are not reliable and pose risk because they often come with malvertising, utility ad ons that slow things down, or direct malware. All of this complicates cyber risk and blurs sight lines into the infrastructure stack. Cyber security isn’t a good place to cut costs so pay for a good antivirus and firewall tool-set. If you are going to use a robust free graphic design tool like GIMP make sure it is documented, always updated, and that it is run in a limited area.

Bonus) Have a Sound Way To Prioritize Patching.

Establish a process to risk-rate vulnerabilities based on: ease of exploit and potential impact of the vulnerability (reference the CVE scores), if other working defenses are in place, and lastly by grouping the assets they may impact.

Reach out to me here for questions.

British Airways Data Breach Likely The First GDPR Rollback Test.

On 08/21/18 British Airways (BA) suffered the start of a data breach which ended on or about 09/05/18. A UPS (uninterruptible power supply) failure and subsequent power surge was partly how the breach was exacerbated. It was also indicated that a third party (vendor) was involved in some way which complicates liability and brings supply chain security more into scope.

The breach allowed cyber criminals to steal personal and financial information from about 380,000 customers who booked directly with the airline in the preceding two weeks (Ivana Kottasová, CNN, 09/07/18). When a passenger makes a booking through the BA website, they must submit their name, e-mail address, address, and credit or debit card details including: the number, expiration date, date, and the security code or “Card Verification Value” (CVV) — all of this was compromised.

BA Breach
Photo: Steve Parsons/PA.

Yet most interestingly, this is one of the first major data breaches since GDPR came into effect in May this year, Walters said (Samuel Gibbs, the Guardian, 09/07/18). “It appears that the company notified the Information Commissioner’s Office and customers within the GDPR’s mandatory 72 hours but the breach will now be investigated and the company could be penalized if it did not take all the necessary measures to protect customer data” (Samuel Gibbs, the Guardian, 09/07/18).

The GDPR rules now in force could see a great increase in the penalties slapped on firms for past data breaches, with fines levied at a maximum of 4% of global revenues. For British Airways’ this amounts to about $630 million dollars based on last years revenue (Gwyn Topham, the Guardian, 09/06/18).

Yet many observers see fines this hefty as counterproductive and the catalyst to push business outside of the EU. Moreover, many international law firms and economists have doubts about the applicability of the GDRP outside of the EU, citing state sovereignty, and free enterprise protection in the United States, etc. The courts will likely further define the context of GRPRs applicability and may roll its reach back some. It is way to early to know what GDPR means in practicality but pushback is coming from well funded, well organized, well researched powerful law and business interest groups. GDPR is dangerously overbroad and ambiguous as echoed in this law firm newsletter (Wendy Butler Curtis and Jeffrey McKenn, Orrick, Herrington & Sutcliffe LLP, 09/09/18). We welcome the debate for a better more modern GDPR.

6 Pronged Approach to Data Exfiltration Detection

The best way to detect precursors to data exfiltration is to employ a six-prong detection approach applied to all risk areas as practicable. Figure 1. shows the six-pronged detection approach.

Figure 1. Six-Pronged Data Exfiltration Precursor Detection Approach [1] [2].

1) Signature Based.

Characteristics: 1) Uses known pattern matching to signify attack; 2) Former zero days, known exploits, etc.

Advantages: 1) Widely available; 2) Most antivirus is based heavily on this; 3) Fairly fast; 4) Easy to implement; 5) Easy to update.

Disadvantages: 1) Cannot detect attacks for which it has no signature – Zero days; 2) Insider threat.

2) Host Based.

Characteristics: 1) Runs on a single host; 2) Can analyze audit-trails, logs, the integrity of files and directories, etc.

Advantages: 1) More accurate than NIDS; 2) Less volume of traffic so less overhead.

Disadvantages: 1) Deployment is expensive; 2) No plan for if the host gets compromised – Real risk for organizations with more than 10 thousand employees.

3) Human Based [2].

Characteristics: 1) Has the unique experience set deriving intuition; 2) Has five senses.

Advantages: 1) Has the ability to learn multiple tools and connect the dots; 2) Can set team direction and inspire people; 3) Can think creatively; 4) Can think with the voice of the customer or recipient of a phishing e-mail.

Disadvantages: 1) Bias and ego; 2) Cannot calculate large numbers fast.

4) Anomaly Based.

Characteristics: 1) Uses statistical model or machine learning engine to characterize normal usage behaviors; 2) Requires big data and other software tools; 3) Recognizes departures from normal as potential intrusions.

Advantages: 1) Can detect attempts to exploit new and unforeseen vulnerabilities; 2) Can recognize authorized usage that falls outside the normal pattern.

Disadvantages: 1) Generally slower, more resource intensive compared to signature-based tools; 2) Greater complexity, difficult to configure; 3) Higher percentages of false alerts.

5) Network Based.

Characteristics: 1) NIDS (network intrusion detection system) examine raw packets in the network passively and triggers alerts.

Advantages 1) Easy deployment; 2) Unobtrusive; 3) Difficult to evade if done at the low level of network operation.

Disadvantages: 1) Fail Open; 2) Different hosts process packets differently; 3) NIDS needs to create traffic seen at the end host; 4) Need to have the complete network topology and complete host behavior; 5) Highly unlikely.

6) Externally Based.

Characteristics: 1) Studies show there are 258 externally measurable characteristics about network infrastructure (without any inside info).

Advantages: 1) Beaching marking – identifying mismanagement symptoms such as poorly configured DNS or BGN networks; 2) Beaching marking – identifying malicious activity which mostly includes SPAM, phishing, and port scanning; 3) One study found it to be highly reliable in predicting breaches (90% true positives in a closed limited test) [3].

Disadvantages: 1) Its low hanging fruit – easy weaknesses to spot; 2) Good I.T. audits and red teaming is similar.

[1] Dash, Debabrata. “Introduction to Network Security”. PowerPoint presentation. 2017.
[2] Photo of public figure Bruce Schneier by Per Ervland. https://www.schneier.com/ 2018.
[3] Liu, Yang; Sarabi, Armin; Zhang, Jing; Naghizadeh, Parinaz; Karir, Manish; Bailey, Michael; and Liu, Mingyan. “Cloudy with a Chance of Breach: Forecasting Cyber Security Incidents” 2015. Pg. 1.

Decryption Options For 3 Ransomware Types

ransomware-main.pngRansomware is on the rise and is going after more victims with little to no defenses, small to medium-small sized businesses and even quiet non-profits. Here are a few tools with a valid track record of stopping and removing 3 common types of ransomware.
1) LockCrypt is a ransomware discovered in June 2017 but is still active in various mutations. It spreads by brute forcing Remote Desktop Protocol credentials – a key port (3389) that should be obviously locked. A prominent example of this exploit occurred in December 2017 when an employee opened an email which was maliciously sent from another co-worker’s account. This was merely an attempt to trick the person to click on the malicious attachment which was appended to the letter. Once it was opened, the ransomware download began after which 48 out of 500 servers of North Carolina County were compromised with LockCrypt (Ugnius Kiguolis, Spyware.com, 12/11/17).

As per Bitdefender, this ransomware family has several sub-variants with the following specific extensions, the first (.1btc) is decryptable with this free Bitdefender tool and the others may be decryptable with the free Trend Micro Malwarebytes Ransomware File Decryptor tool (check for updates).

  1. .1btc (decryptable and included in this version of the tool)
  2. .lock (decryptable, not included in our tool)
  3. .2018 (decryptable, not included in our tool)
  4. .bi_d (not decryptable)
  5. .mich (decryptable, not included in our tool)

2) The five-year-old ransomware Trojan-Ransom.Win32.Rakhni has received a facelift recently which now allows it to decide whether or not to install its traditional ransomware or to drop a cryptominer.

The malware is delivered through spam campaigns where the email comes with a PDF attached which the receiver is prompted to save and then enable editing. When the victim attempts to open the document he or she is presented with an executable that portrays itself as an Adobe Reader plugin and it asks the person to allow it to make changes to their computer (Doug Olenick, SC Magazine, 07/06/18).

According the Kaspersky labs, the current injection chain on this newer exploit is largely the same as before. However, the malware moves along a rather complex path before it decides which form it will take. During the process it will check to make sure the device is not a virtual machine, it will check for and disarm an AV software and also Widows Defender and finally erase most of the footprints made during the malware installation.

The executable, which is written in Delphi and has its strings encrypted, then presents a message box that states the PDF could not be opened, basically to keep the victim from thinking anything negative is about to happen (Doug Olenick, SC Magazine, 07/06/18).

It first checks that the device has one of the substrings:

  1. \TEMP
  2. \TMP
  3. \STARTUP
  4. \CONTENT.IE
  5. Registry check

It then checks to see if the registry contains checks that in the registry there is no value HKCU\Software\Adobe\DAVersion and if it finds this is so it creates HKCU\Software\Adobe\DAVersion = True (Doug Olenick, SC Magazine, 07/06/18). As of Feb 2018 Kaspersky Labs has a free decryption tool (since updated) to get rid of most variations of this infection.

3) Thousands of LabCorp’s servers were impacted by the SamSam ransomware attack on 07/13/18, a CSO online report confirmed (Steve Ragan, 07/19/18). Early information indicates that the company contained the spread of the infection and neutralized the attack within 50 minutes – great. However, before the attack was fully contained, 7,000 systems and 1,900 servers were negatively impacted; 350 were production servers (Steve Ragan, CSO Online, 07/19/18. This is a growing trend in the healthcare sector that reached 15% in 2016 (Fig1. Greg Slabodkin, Health Data Management, 04/11/18).

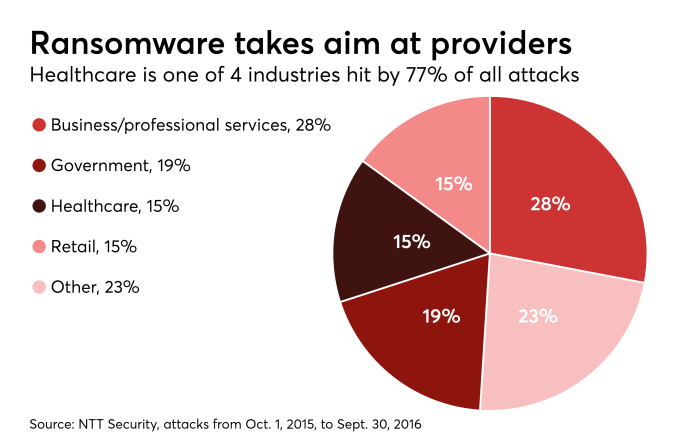

Fig. 1.
Ransomeware Health.pngAs per Jessica Davis of HealthcareITnews, “SamSam is the virus that shut down the Allscripts platform for about a week in January 2017 and is known to use brute force RDP (remote desktop protocol) attacks to breach a system and spread. The variant is also responsible for taking down Hancock Health, Adams Memorial and the government systems of Atlanta — among a host of others” (HealthcareITNews.com, 07/20/18).

The ransom note it displays is quite interesting, giving the option of randomly-selected file encryption (if you don’t pay the full amount). They’ll also unlock one file for free as a token of trust that they will give your files back after payment (Christopher Boyd, Malwarebytes Labs, 05/01/18).

Fig 2.
samsam-ransomware-infected-file-sensorstechforum-com-sorry-for-files-html-virus
The virus has been updated a couple of times. Currently, it appends one of the following file extensions (Julie Splinters, spyware.com, 06/23/18):

  1. .weapologize;
  2. .AreYouLoveMyRansFile;
  3. .breeding123;
  4. .country82000;
  5. .disposed2017;
  6. .fucku;
  7. .happenencedfiles;
  8. .helpmeencedfiles;
  9. .howcanihelpusir;
  10. .iaufkakfhsaraf;
  11. .mention9823;
  12. .myransext2017;
  13. .noproblemwedecfiles;
  14. .notfoundrans;
  15. .prosperous666;
  16. .powerfulldecryp;
  17. .supported2017;
  18. .suppose666;
  19. .VforVendetta
  20. .Whereisyourfiles;
  21. .wowreadfordecryp;
  22. .wowwhereismyfiles;
  23. .loveransisgood.

Different variants of the virus might drop different versions of ransom notes. However, at the moment victims might receive one of these ransom notes in:

  1. 0009-SORRY-FOR-FILES.html,
  2. IF_WANT_FILES_BACK_PLS_READ.html,
  3. 000-PLEASE-READ-WE-HELP.html,
  4. 000-No-PROBLEM-WE-DEC-FILES.html,
  5. READ-FOR-DECCCC-FILESSS.html,
  6. HELP_DECRYPT_YOUR_FILES.HTML,
  7. 001-HELP_FOR_DECRYPT_FILE.html,
  8. 006-READ-FOR-HELLPP.html,
  9. PLEASE_READ_FOR_DECRYPT_FILES_[Number].html,
  10. PLEASE-README -AFFECTED-FILES.html.

SamSam is the newest and most powerful of the three types of ransomeware mentioned above. There is no known decryption tool or fix for data that you don’t already have your data backed up. Yet it is known to uses tools such as Mimikatz to steal valid user credentials and common IT management tools to move malware to new hosts. Attackers and their malware are increasingly reliant on Mimikatz and similar tools, such as PsExec — associated with everything from PoS malware to webshells — to spread through the network and do damage (Dark Reading, 06/20/18, Ajit Sancheti). Stay tuned here for updates regarding a stable decryption tool for SamSam.

Chinese Hackers Stole About 614GB of Data from Unnamed U.S. Navy Contractor

A series of cyber attacks backed by Chinese government hackers earlier this year infiltrated the computers of a U.S. Navy contractor, allowing a large amount of highly-sensitive data on undersea warfare to reportedly be stolen. Likely by A People’s Liberation Army unit, known as Unit 61398, which is filled with skilled Chinese hackers who pilfered corporate trade secrets to benefit Chinese state-owned industry. The breaches, which took place in January and February 2018, including secret plans to develop a supersonic anti-ship missile for use on US submarines by 2020, according to American officials.

Fig. 1. U.S. Navy Submarine.
Navy Image

This data was of a highly sensitive nature despite it being housed on the contractor’s unclassified network – putting it here was mistake and exacerbated vulnerabilities. A contractor who works for the Naval Undersea Warfare Center in Newport, R.I. — a research and development center for submarines and underwater weaponry — was the target of the hackers, the Post reported. While the unnamed officials did not identify the contractor, they told the newspaper that a total of 614 gigabytes of material was taken. Included in that data was information about a secret project known as Sea Dragon, in addition to signals and sensor data and the Navy submarine development unit’s electronic warfare library. The Washington Post said it agreed to withhold some details of what was stolen at the request of the U.S. Navy over fears it could compromise national security.

A Navy spokesperson told Fox News in a statement the service branch will not comment on specific incidents, but cyber threats are “serious matters” officials are working to “continuously” bolster awareness of. There are measures in place that require companies to notify the government when a cyber incident has occurred that has actual or potential adverse effects on their networks that contain controlled unclassified information,” Cmdr. Bill Speaks said. “It would be inappropriate to discuss further details at this time.”

Fig 2. China’s first domestically manufactured aircraft carrier returns to port in Dalian after sea trials on 05/18/2018.

chinese-aircraft-carrier
Military experts fear that China has developed capabilities that could complicate the Navy’s ability to defend US allies in Asia in the event of a conflict with China. The Chinese are investing in a range of platforms, including quieter submarines armed with increasingly sophisticated weapons and new sensors, Admiral Philip Davidson said during his April nomination hearing to lead US Indo-Pacific Command. And what they cannot develop on their own, they steal – often through cyberspace, he said. “One of the main concerns that we have,” he told the Senate Armed Services Committee, “is cyber and penetration of the dot-com networks, exploiting technology from our defense contractors, in some instances.”

Chinese government hackers have previously targeted information on the U.S. military, including designs for the F-35 joint strike fighter which they copied. Last year, South Korean firms involved in the deployment of the U.S. Army’s Terminal High-Altitude Area Defense, or THAAD, missile defense system, the Wall Street Journal reported at the time. No matter how fast the government moves to shore up its cyber defenses, and those of the defense industrial base, the cyber attackers move faster.

Compiled from Jennifer Griffin at Fox News, The Post, The Wall Street Journal, Independent News, and Huff Post. Edited and curated by Jeremy Swenson of Abstract Forward Consulting.

Review of the 2018 Verizon Data Breach Report

The 11th edition of the DBIR (Data Breach Investigation Report) was released this month. It analyzed more than 53,000 cybersecurity incidents and over 2,200 data breaches across the globe. Here is a summary of its key findings:
Ransomware continues to be a top cybersecurity threat, according to the report. Ransomware is found in almost 39 % of malware attacks – double the amount in last year’s analysis. “Ransomware remains a significant threat for companies of all sizes,” says Bryan Sartin, executive director security professional services, Verizon. “It is now the most prevalent form of malware, and its use has increased significantly over recent years.” This comes as no surprise to many city and state officials that have battled with ransomware takeovers recently. Systems in the city of Atlanta were offline for several days last month following a ransomware attack. Government offices and municipal systems have also been targeted in Baltimore, North Carolina, San Francisco, and others yet to come forward – the government does not like to admit their errors.

The report also shows that attacks on public sector organizations continue to focus on espionage. 43 % of public sector attacks were motivated by espionage. Of those attacks, 61 % were carried out by state-affiliated actors. Privilege misuse and error by insiders account for a third of breaches. Small businesses represent 58 percent of data breach victims. Over 50% of the attacks on public sector organizations were accomplished using backdoors in software, which arguably makes the case for why putting backdoors in software is a bad idea even if a government plans to use it for its own purposes – the government is far behind the private sector in incubating innovation here. Using phishing techniques to get data from individuals remains the most popular method as individuals continue to be the weakest link when it comes to security.

Fig 1. Data Breach Causes, Verzion 2018
Using stolen credentials topped the list of causes for data breaches (See Fig 1. for the other top causes). A common saying is “it’s easier to ask the employee for their password than try to guess it”, so social engineering continues to be a very useful tactic for hackers. For most employees, the only security protection system is their password. If a cyber-criminal obtains it, they can easily bypass most of the company’s security controls.

Attribution is probably one of the most difficult tasks in cyber-crime which already has more challenges than most people realize, with misdirection and lack of digital footprints to help lead to the cyber-criminal. This is likely due to several virtual machines and botnets used to facilitate the attack across several nations – all of which are likely unfriendly to the United States. Specifically, 73% of cyber-attackwere caused by outsiders. Organized crime rings are very likely using hackers as a service because 50% of cyber-attacks were attributed to organized crime. 12% was attributed to nation-states – APT (advanced persistent threats) who have unlimited funds.

Specific to Healthcare: The healthcare industry is rife with error and misuse. In fact, it is the only industry that has more internal actors behind breaches than external. In addition to these problem areas, ransomware is endemic in the industry—it accounts for 85 % of all malware in healthcare.

In total, there were 750 incidents and 536 with confirmed data disclosed. The top three patterns include: miscellaneous errors, crimeware, privilege misuse – 63 % of all incidents within healthcare. Breach threat actors breakdown: 56 % internal, 43 % external, 4 % partner, 2 % multiple parties. Breach actor motives are: 75 % financial, 13 % fun, 5 % convenience, Data compromised: 79 % medical, 37 % personal, 4 % payment.

The full report is available here.

Abstract Forward Consulting can help you review the issues in this report to build stronger security and process controls. Contact us here to learn more.

Jeremy Swenson, MBA, MSST

AbstractFwdHzTag300
